Micro USB Cable ×1
HDMI Cable ×1
Wire Clip ×1
Cleaning Cloth ×1
What is the correct way to put on and wear the DJI Goggles?
Insert the headband buckle into the slot above the lenses until you hear a click. Check that it has been fastened securely. 2. Align the lenses over your eyes and pull the strap down. Adjust the strap knob until the headset fits snugly and comfortably on your head.
Can I wear glasses while using the DJI Goggles kit?
Yes. The DJI Goggles can be worn over glasses.
Are the DJI Goggles water-resistant?
No, they are not.
How do I adjust the interpupillary distance (IPD) between the lenses? What pupil distance will suit me best?
First, turn the IPD knob to adjust the distance between the lenses until the images are aligned. When the images align, you will have the most suitable pupil distance for you.
How do I avoid touching the touchpad by mistake?
You can lock the touchpad by swiping backwards with two fingers.
When pressing and holding down the power button, my DJI Goggles sometimes only work sporadically. Why?
To ensure normal system functioning, the DJI Goggles will not respond to any on/off command within 10s after the last turn on/turn off.
How many DJI Goggles can be connected to one Mavic Pro drone at the same time?
Apart from pairing the DJI Goggles with a Mavic Pro drone and remote controller, there are two other connection combinations: 1. One Mavic Pro drone + two DJI Goggles + two Mavic Pro remote controllers 2. One Mavic Pro drone + one DJI Goggles + two Mavic Pro remote controllers.
What happens when more than one pair of DJI Goggles / remote controllers are connected to the same drone?
In Coach Mode, only the master remote controller can change the flight mode. The drone starts to respond to the slave remote controller only when the master remote controller doesn't give any commands for more than two seconds. The master remote controller can override anytime. In Dual Operation Mode (one drone + two DJI Goggles + two remote controllers), the slave DJI Goggles will not support Head Tracking Mode. If the remote controller and DJI Goggles are being operated by the same user, a spotter who is able to give instructions and warnings is required to ensure safe flying.

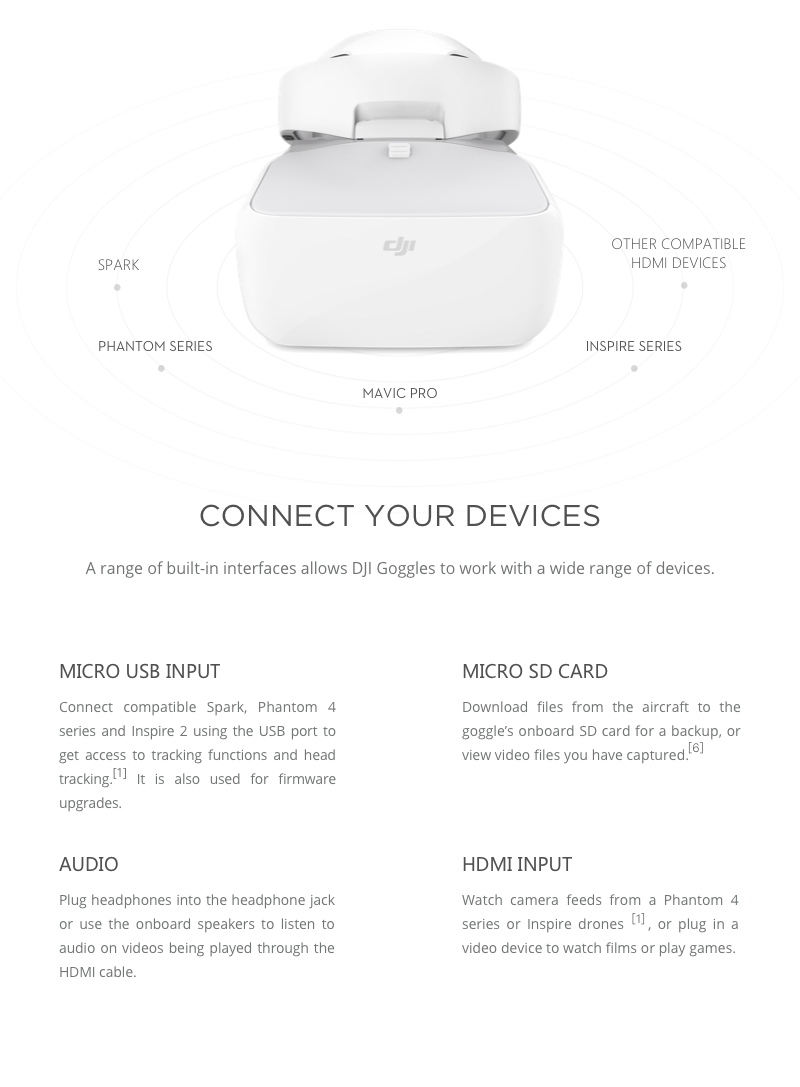

What DJI drones are compatible with the DJI Goggles through USB cables?
Spark, Phantom 4, Phantom 4 Pro, Phantom 4 Advanced, and Inspire 2.
What devices can be connected with the DJI Goggles using the HDMI connector?
Any device that has an HDMI port.
What is the Micro SD Card slot on the DJI Goggles used for?
The Micro SD Card slot on the DJI Goggles is used to download files from the aircraft to the goggle’s onboard SD card for backup and to view captured video files.
Can I download videos not recorded by a drone to a Micro SD Card and then insert them into the DJI Goggles to watch them?
Why is the Mavic Pro the only drone that can be connected to the DJI Goggles wirelessly?
Because of OcuSync. The same video tranmission system carried by the Mavic Pro has also been integrated into the DJI Goggles, making the wireless connection between these two devices possible.
What are the main differences between HD Mode and Smooth Mode?
In HD Mode, the resolution of video transmission footage reaches 1080p/30fps for near field, lowering to 720p/30fps for far field or when affected by interference. In Smooth Mode, the resolution will remain at 720p/60fps. The former is for a more clear and immersive FPV experience, and the latter is for smoother FPV footage.
Why does the video transmission image quality in my DJI Goggles sometimes change?
The resolution of video transmission footage seen in the DJI Goggles changes along with the video recording resolution. Therefore: 1. When video is recorded at 4K, the highest video tranmission resolution is 720p/30; 2. When video is recorded at 2.7K, video transmission resolution tops out at 1080p/30; 3. When video is recorded at 1080p or below, depending on whether the frame rate is higher than 30fps or lower than 30fps, the max video transmission resolution will be 720p/60fps or 1080p/30fps, respectively.
What is the difference between the DJI Goggles 1080p screens and other 2K screens?
Typical “2K” screens inside other brands of goggles are split into two 1280x1440 sections, one for each eye at 720p. The DJI Goggles use dual 1080p screens, meaning that each screen has a maximum resolution of 1920*1080.
What kind of latency is there when the DJI Goggles are connected with different devices?
HD video downlink latency (near field and free of interference) can be as low as: 110 ms (Mavic Pro, 720p60, video format: 720p120) 150 ms (Phantom 4 series, 720p60, video format: 720p60/720p120) 140 ms (Inspire 2+X5S, 720p60, video format: 1080p120) 190 ms (Inspire 2+X4S, 720p60, video format: 1080p60)
How do I update the DJI Goggles firmware?
There are three main ways to update firmware: 1. Directly connect your DJI Goggles to a PC. 2. Pair your remote controller, drone, and DJI Goggles before connecting the remote controller to a PC, and update all three devices together. 3. Pair your remote controller, drone, and DJI Goggles, then connect the remote controller with the DJI GO app (or GO 4.0) to update the three devices simultaneously within the app.
Do the DJI Goggles offer the same functions no matter what device they're connected to? If not, what are the main differences?
No. For specific functions according to the different devices the DJI Goggles are connected to, please refer to the user manual.
Why does a drone connected to the DJI Goggles keep rotating in Head Tracking Mode even when I have already stopped moving?
In Head Tracking Mode, a drone's yaw depends on the pilot's head movements. If the pilot doesn't stop where he began, the drone will keep rotating until the pilot turns his head back to the original position.
Why do the C1/C2 buttons on the Mavic Pro controller stop responding when the drone is connected to the DJI Goggles?
For ease of operation, when the Mavic Pro is connected to the DJI Goggles, the C1/C2 buttons are automatically set to the Fn/Back buttons, which function the same as on the DJI Goggles.
